product description:
Weifu series wear-resistant ceramic repair agent is a new metal repair and protection material composed of high molecular polymer and metal ceramics with special functions.
●High bonding strength with metal matrix, commonly known as new cold welding technology
●Room temperature curing, low temperature resistance and high temperature resistance
●Super high wear resistance is better than alloy tool steel
●Corrosion resistance to a variety of chemical media is better than nickel-based alloys
●The coefficient of linear expansion is close to that of metal, and the stress change is small
Applications:
Suitable for wear and repair of mechanical equipment under various working conditions
●Repair of pump valve shells, impellers, and conveying pipes that are worn out due to cavitation and erosion
●Compensation and repair of worn shafts, shaft holes, keyways, and splines
●Adapt to various solid-liquid media and wear conditions of large and small particles
Packing: 2kg/set
Product name |
Appearance |
Density (g/cm³) |
Weight ratio (A/B) |
Volume ratio (A/B) |
Applicable period (min) |
Tensile strength (Mpa) |
Compressive strength (Mpa) |
Temperature resistance |
Features |

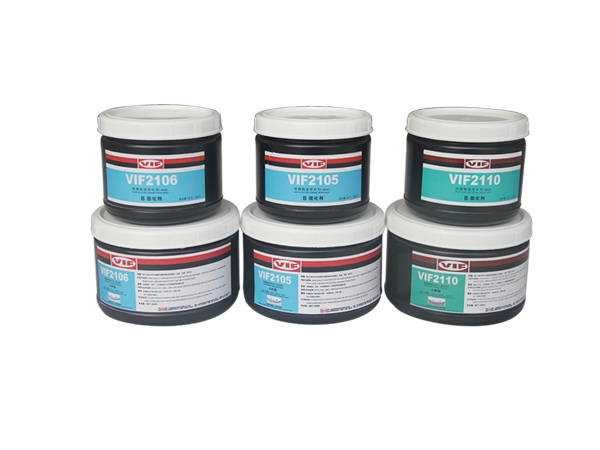

VIF2105 |
Gray paste |
2.45 |
8:1 |
4:1 |
60 |
32 |
116 |
150/90 |
Small particles |
VIF2106 |
Gray paste |
2.42 |
4:1 |
3:1 |
65 |
28 |
105 |
150/90 |
Large particles |
VIF2110 |
Gray paste |
2.43 |
4.5:1 |
3.5:1 |
45 |
19 |
92 |
220/120 |
Clay temperature resistant type |
